CYBRO TECH

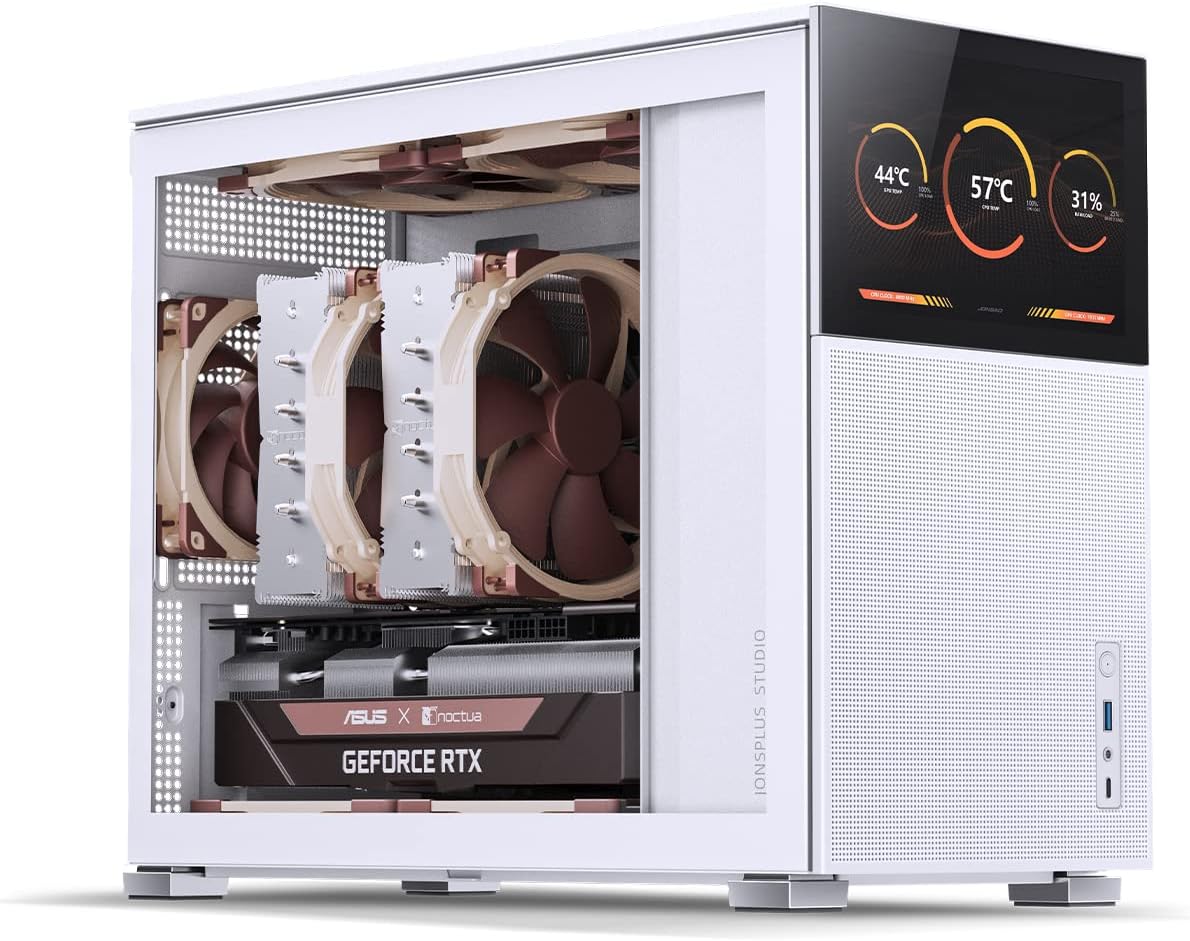

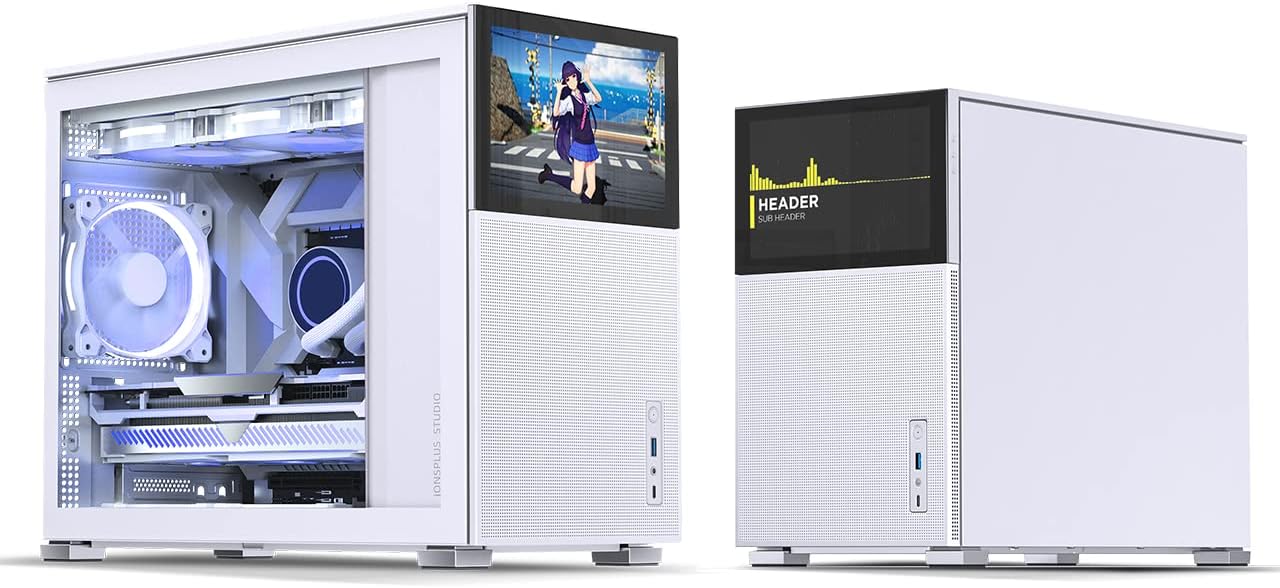

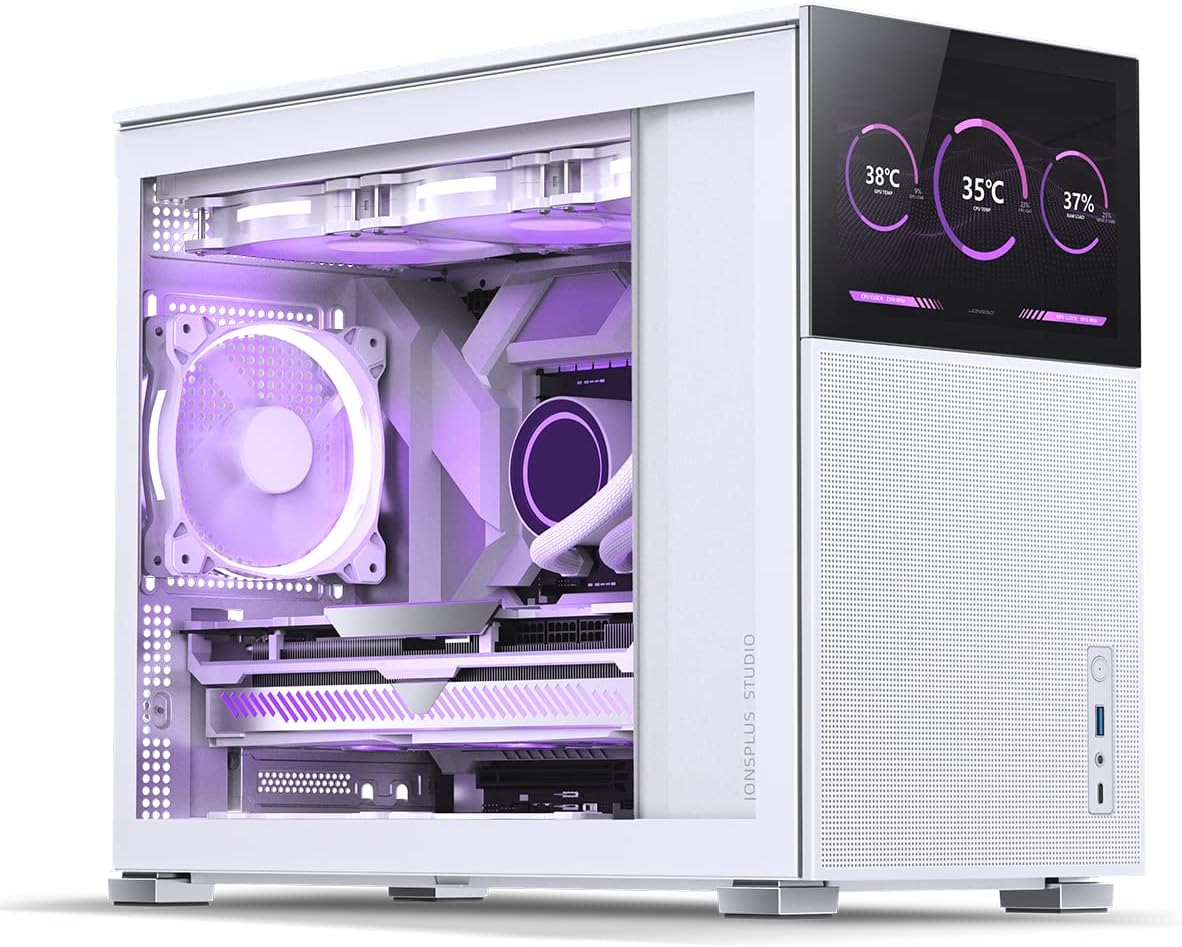

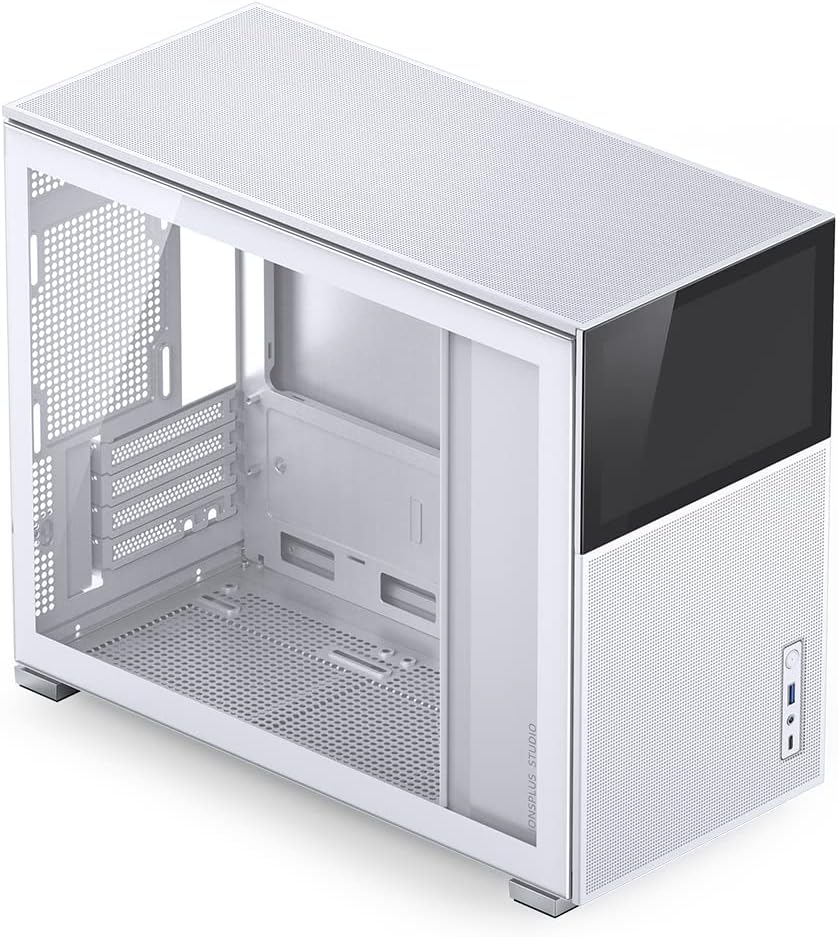

D31 MESH SC White Micro Computer Case with Screen, M-ATX/ITX Mainboard/Support RTX 4090(335-400Mm) GPU 360/280Aio,Power ATX/SFX: 100Mm-220Mm Multiple Tool-Free Design Pc Case
D31 MESH SC White Micro Computer Case with Screen, M-ATX/ITX Mainboard/Support RTX 4090(335-400Mm) GPU 360/280Aio,Power ATX/SFX: 100Mm-220Mm Multiple Tool-Free Design Pc Case
Couldn't load pickup availability
- Note : If the screen has compatibility problems during installation, please contact customer service for solutions. (AIDA64 software needs to be purchased by users)

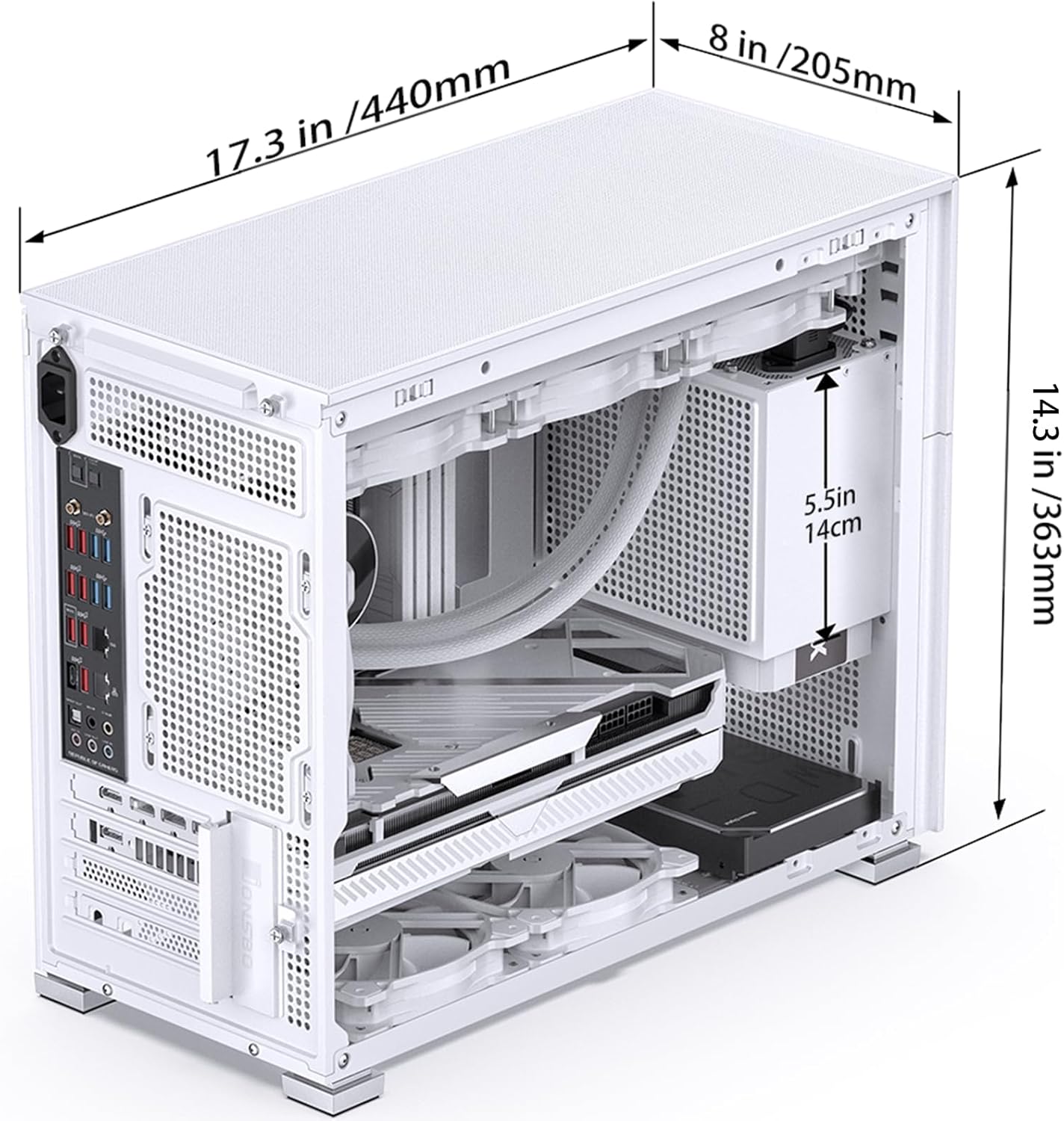

- D31 "Pine cone" series-Mesh Screen PC Case， size 205*363*452mm
- Computer Case Motherboard : MATX/MicroATX GPU:330-400mm PSU: ATX/SFX:100mm-220mm L max
- Air cooler:168mm high-order / Support AIO:360/280/240 (Top) 360/240 (Bottom)
- Fan mounting position：Top 120mm*3 or 140mm*2 Rear 120*1mm Bottom 120mm*3 or 140mm*2 Front 120mm*1
Product Description
“The wallpaper software recommends using "Wallpaper Engine",
Hardware monitoring software is recommended to use "AIDA64 Extreme".
(The software needs to be purchased by the user)
The 1280x800 resolution / 8-inch screen is about 188ppi, which exceeds the display accuracy of a 27-inch 4K monitor of about 162ppi. According to the actual use of 50cm~70cm visual distance, will not produce a sense of pixel particles, all kinds of wallpaper dynamic effects can jump on the screen.

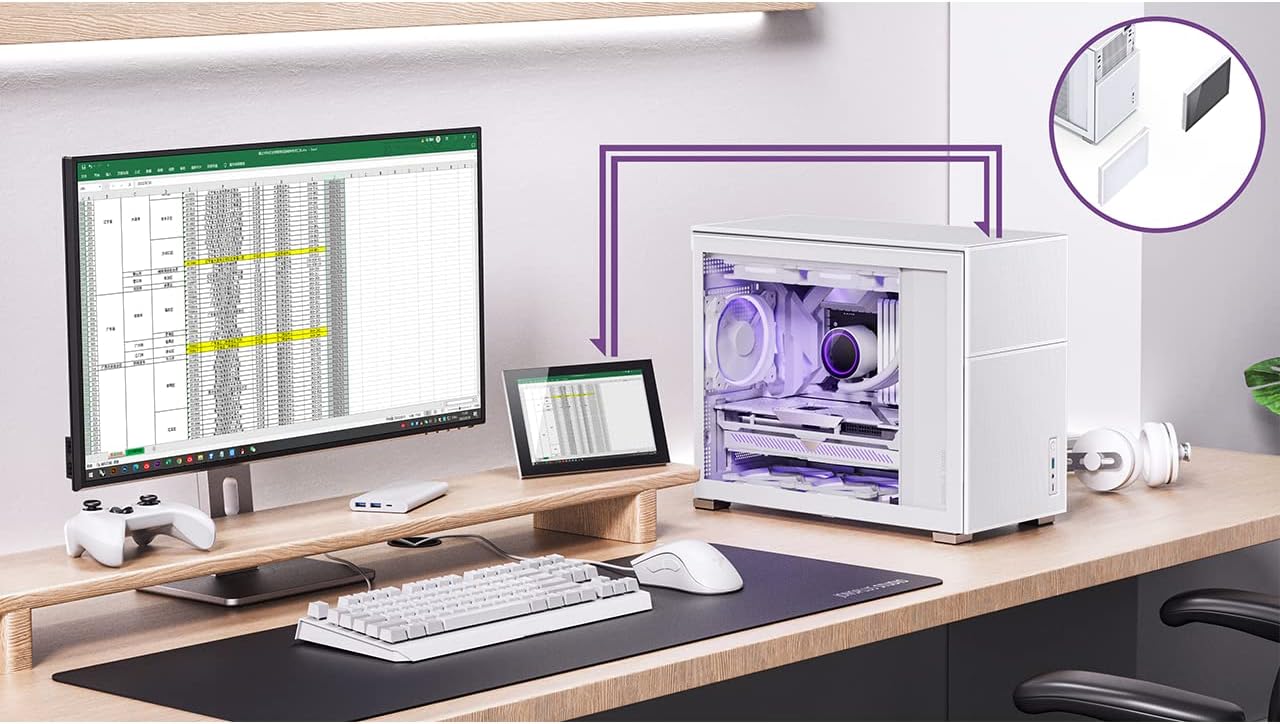

One screen, dual purpose!

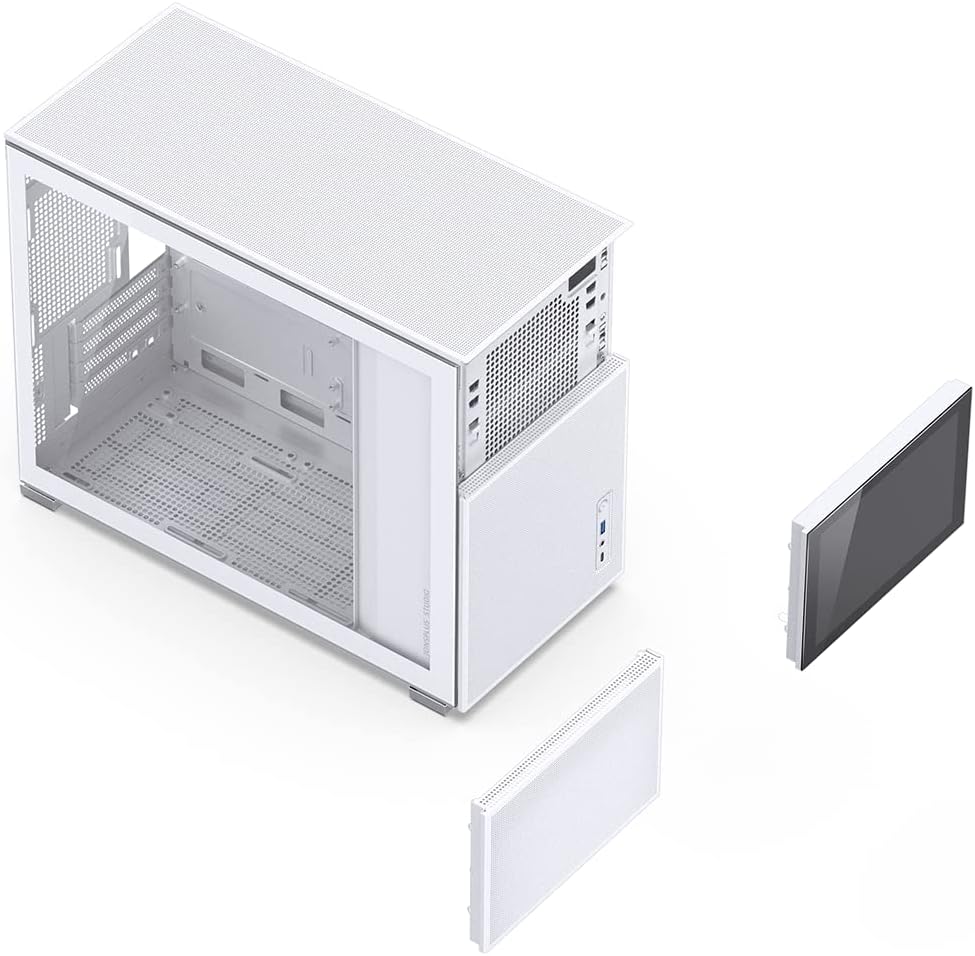

It can be completely disassembled and placed on the desktop
Cooperate with the main display in multitasking operating
Short vertical air duct is constructed for heat dissipation
The heat flow in the space will rise naturally. The D31 follows this characteristic to build the air duct: it supports up to 8 or 12CM fans (or 4 14CM+2 12CM fans).
Thanks to the relatively low box height, the vertical air flow from bottom to top quickly covers the heating hardware, and the internal accumulated heat is discharged from the top mesh. In addition, the installation direction of the power supply can be bidirectional: the power supply air inlet can face the panel direction, without interfering with the internal air duct under the air cooling radiator environment.

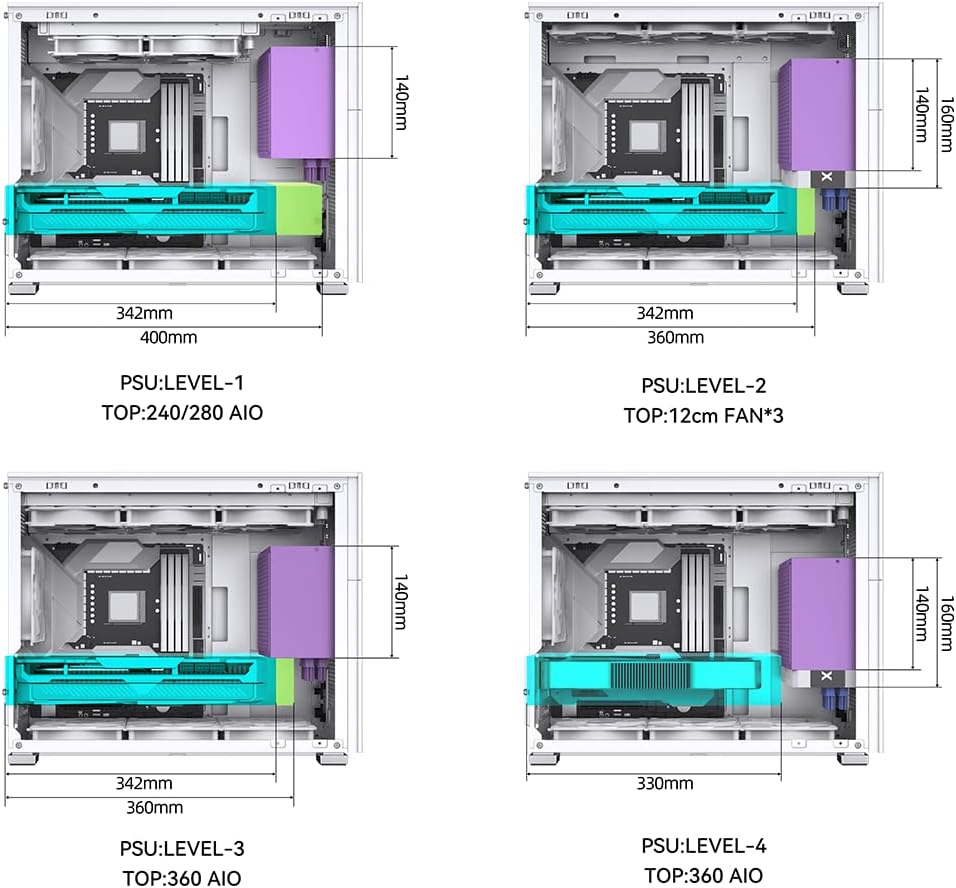

lf the GPU slot on your motherboard is located in the 2nd slot (20mm away from the 1st slot), the space for installing the power supply and GPU will be increased, You can calculate the space according to the figure above.
When the length of the power supply is <330mm, the power supply can be installed in the fourth hanging position.
When three 12cm fans are installed on the top, the power supply can be installed in the second hanging position
The GPU calculation length includes the total length of the pci-e block
The length of the GPU is affected by the orientation of the power supply
If 360AIO is installed on the top, it is recommended to install the power supply with a length of 14cm to obtain a longer GPU installation control
Cooling system support specifications
Fan support：
Top：120mm*3 or 140mm*2( Optional)
Rear：120mm*1( Optional)
Bottom：120mm*3 or 140mm*2( Optional)
Front：120mm*1( Optional)
AIO SUPPORT：
Top：120/240/280/360*1
Rear：120*1
bottom：120/240/360*1
